Click actions

Left-click actions (onClick)

Add onClick when a click should filter the dashboard, drill into a detail page, or open an overlay, and you want the hover affordance to tell readers a panel is clickable before they click it.

Revenue by region

Filter to EMEA

NAEMEAAPACLATAM

What you can do

An onClick action takes exactly one kind: filter, drill, or openOverlay. copy, export, and link are right-click only.
Every onClick action requires type and label; label is the hover affordance text shown before the click, with no opt-out.
filter and drill bind the clicked value with param + valueFrom + valueType, or with a bindings array of {param, valueFrom, valueType}. Use exactly one of the two.
valueFrom reads category, value, seriesName, or a field name; valueType is string, number, date, or boolean.
Labels can template {category}, {value}, {seriesName}, or a field name from the clicked datum.
On a table panel the click target is a cell but the bound datum is the whole row; each actionable row is one tab stop, and Enter or Space activates it.

Available on every chart:* panel type plus table, kpi, stat, and metric-strip; not allowed on filter, filter-bar, container, divider, section, text, html, hero, media, or agent panels, and inert on chart:line:racing.

Spec

View spec

{
  "id": "rev-by-region",
  "type": "chart:bar",
  "title": "Revenue by region",
  "data": {
    "query": "SELECT region, SUM(amount) AS revenue FROM orders GROUP BY 1"
  },
  "spec": {
    "categoryField": "region",
    "valueField": "revenue"
  },
  "onClick": {
    "type": "filter",
    "label": "Filter to {category}",
    "param": "region",
    "valueFrom": "category",
    "valueType": "string",
    "targets": "all"
  }
}

onClick.label templates {category} from the clicked bar, and param binds the resulting filter under the name region.

Try it live

Open the pipeline-control-room template in the Builder

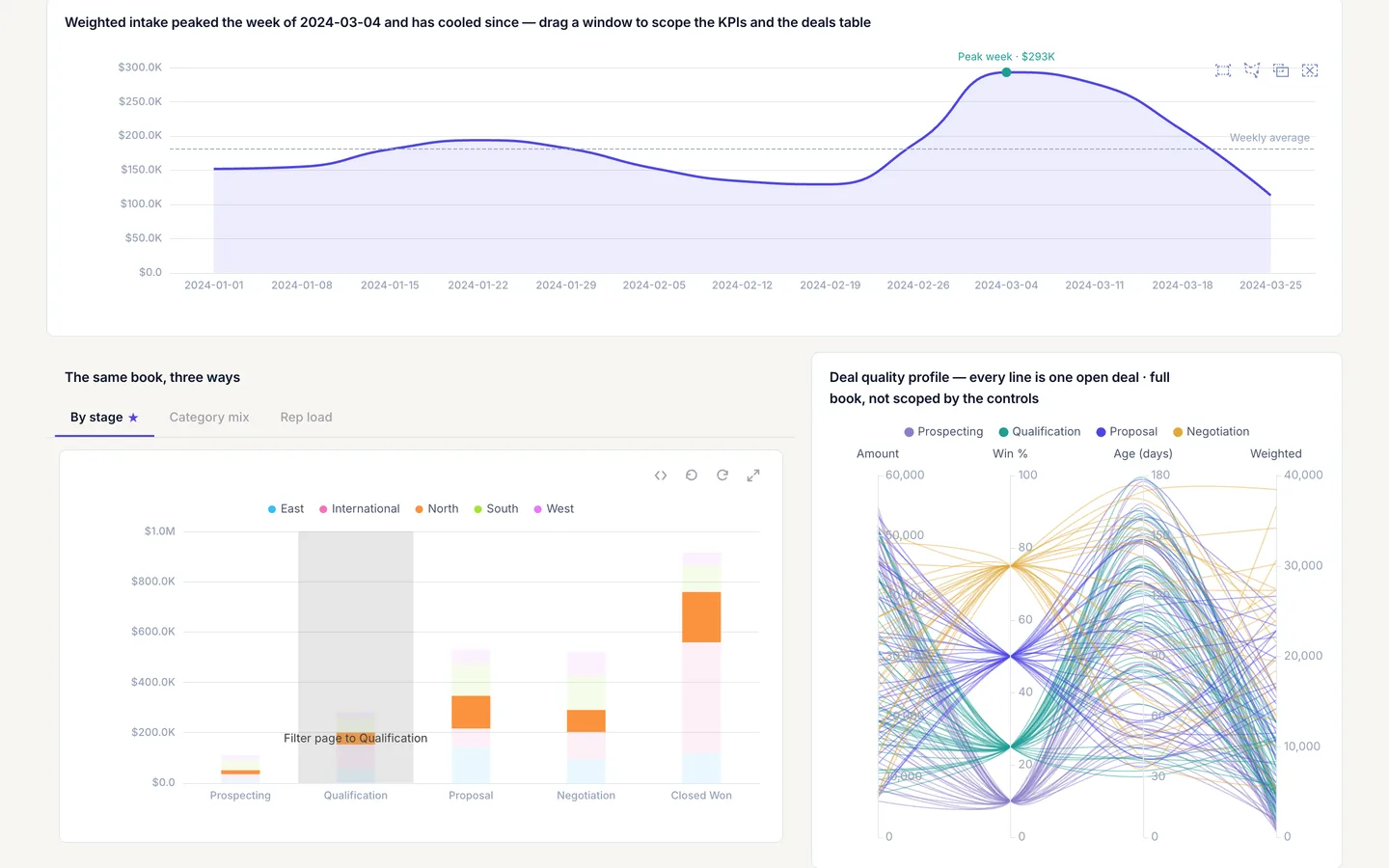

Open the pipeline-control-room template and click a segment of cr-stage-mix to see the hover affordance and the resulting filter.

Build it in dvt

Every interaction on this site is a few lines of the same declarative JSON spec. Read the full spec format, or connect an AI agent to your warehouse and build one live in the quickstart.
