Filtering

Cross-filter (filter action)

Add a filter action when clicking one panel should narrow what other panels on the page show, without a separate filter control.

By segment

Segment: Enterprise

What you can do

A filter action of type filter, on onClick or contextMenu, writes the clicked value into a param instead of navigating.
targets is all or a list of panel ids; each listed panel re-queries once the param changes.
Target panels read the param via data.params and a %(name)s placeholder in their query.
valueFrom reads category, value, seriesName, or a field name from the clicked datum.
Combine with the label affordance rule from onClick: label is required and shown on hover before the click.

Available anywhere onClick or contextMenu is available; the targeted panels must declare the same param name in data.params.

Spec

View spec

[
  {
    "id": "revenue-by-segment",
    "type": "chart:pie",
    "title": "Revenue share by segment",
    "data": {
      "query": "SELECT segment, SUM(amount) AS revenue FROM orders GROUP BY 1"
    },
    "spec": {
      "categoryField": "segment",
      "valueField": "revenue"
    },
    "onClick": {
      "type": "filter",
      "label": "Filter to {category}",
      "param": "segment",
      "valueFrom": "category",
      "valueType": "string",
      "targets": [
        "orders-by-month"
      ]
    }
  },
  {
    "id": "orders-by-month",
    "type": "chart:line",
    "title": "Orders by month",
    "data": {
      "query": "SELECT order_month, COUNT(*) AS orders FROM orders WHERE segment = %(segment)s GROUP BY 1 ORDER BY 1",
      "params": {
        "segment": null
      }
    },
    "spec": {
      "categoryField": "order_month",
      "valueField": "orders"
    }
  }
]

Clicking a pie slice writes segment and re-queries only orders-by-month, the one panel named in targets.

Try it live

Open the pipeline-control-room template in the Builder

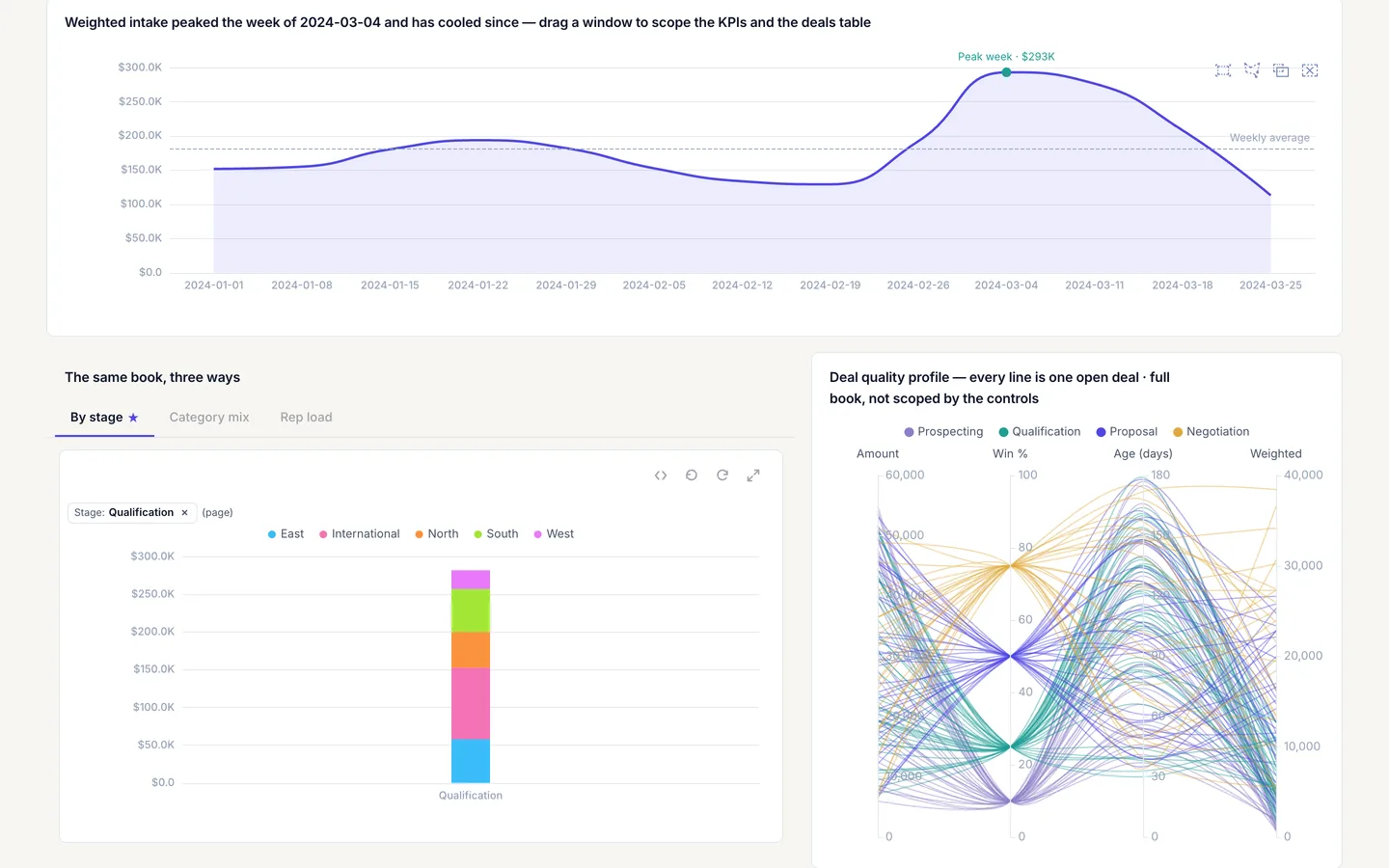

Open pipeline-control-room and click a segment of the stacked stage bar, cr-stage-mix, to write the stage param and re-query every panel that reads it.

Build it in dvt

Every interaction on this site is a few lines of the same declarative JSON spec. Read the full spec format, or connect an AI agent to your warehouse and build one live in the quickstart.
