Layout & binding

Params & query binding

Read this when you need to understand how a panel's query receives a value from a filter, a brush, or a drill or filter action.

params: { region: "EMEA", min_amount: 0 }

WHERE region = %(region)s

What you can do

data.params on a panel declares the named values its query reads, each with a default; null means unset.
The query references a param as a %(name)s placeholder, psycopg style, and dvt binds the value server-side, never string-interpolates it.
Param names match ^[A-Za-z_][A-Za-z0-9_]*$.
Filters, brush, and filter or drill actions all write params; panels read them via data.params.
A param that no target panel declares is flagged by the data-binding lint.
unsetMode on a filter decides whether an unset param is omitted from the query or bound as null.

Available on any panel with a data.query; layout and filter panels write params but do not read them.

Spec

View spec

{
  "id": "orders",
  "type": "table",
  "title": "Orders",
  "data": {
    "query": "SELECT order_id, region, amount FROM orders WHERE region = %(region)s AND amount >= %(min_amount)s",
    "params": {
      "region": "EMEA",
      "min_amount": 0
    }
  },
  "spec": {
    "columns": [
      {
        "field": "order_id"
      },
      {
        "field": "region"
      },
      {
        "field": "amount"
      }
    ]
  }
}

region defaults to EMEA and min_amount to 0, so the query runs with those defaults even before any filter changes them.

Try it live

Open the pipeline-control-room template in the Builder

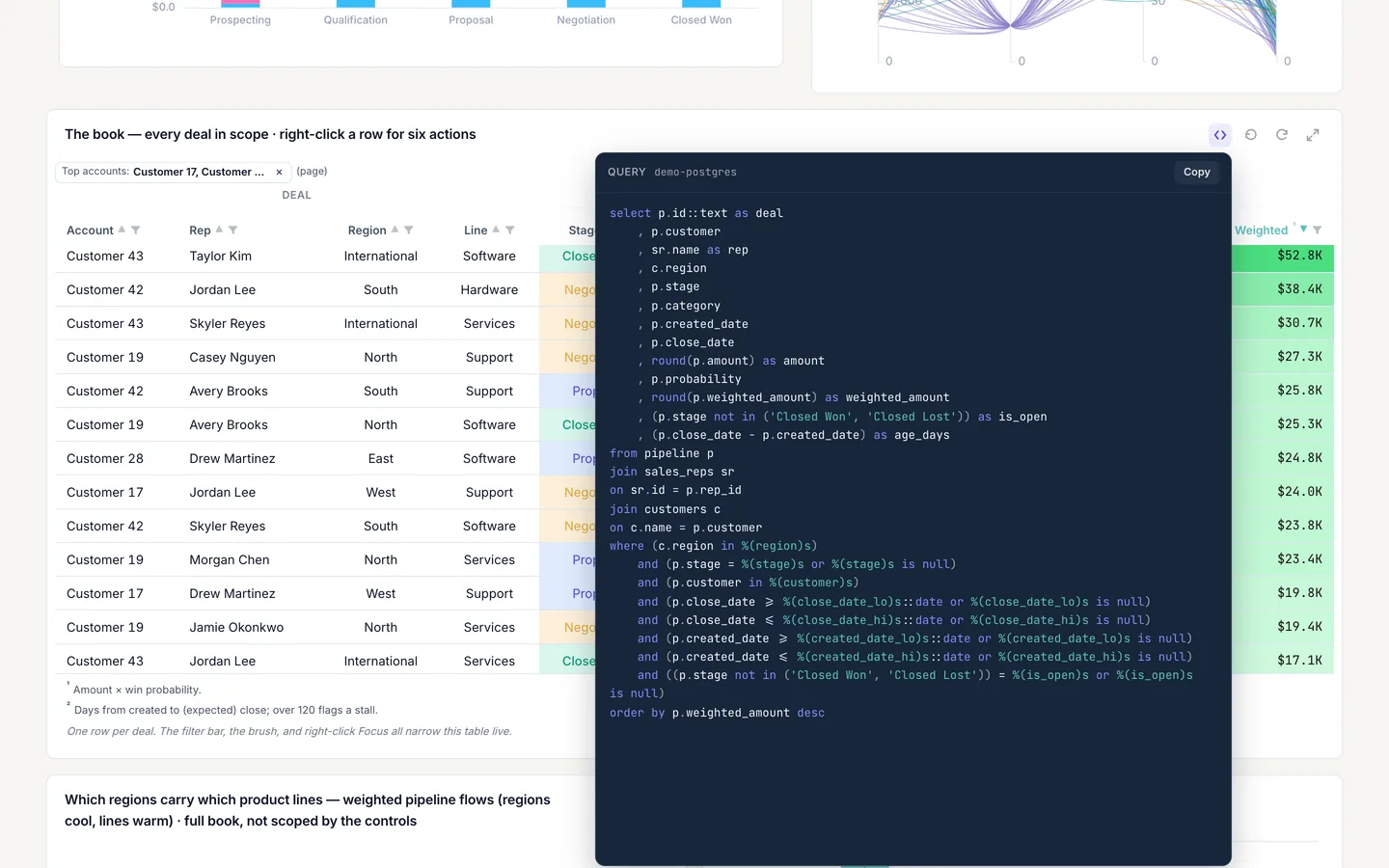

Open pipeline-control-room and inspect data.params on the deals table, cr-table: eight bound params carry the filter bar's and the cr-intake brush's values into its query.

Build it in dvt

Every interaction on this site is a few lines of the same declarative JSON spec. Read the full spec format, or connect an AI agent to your warehouse and build one live in the quickstart.
